Product introduction

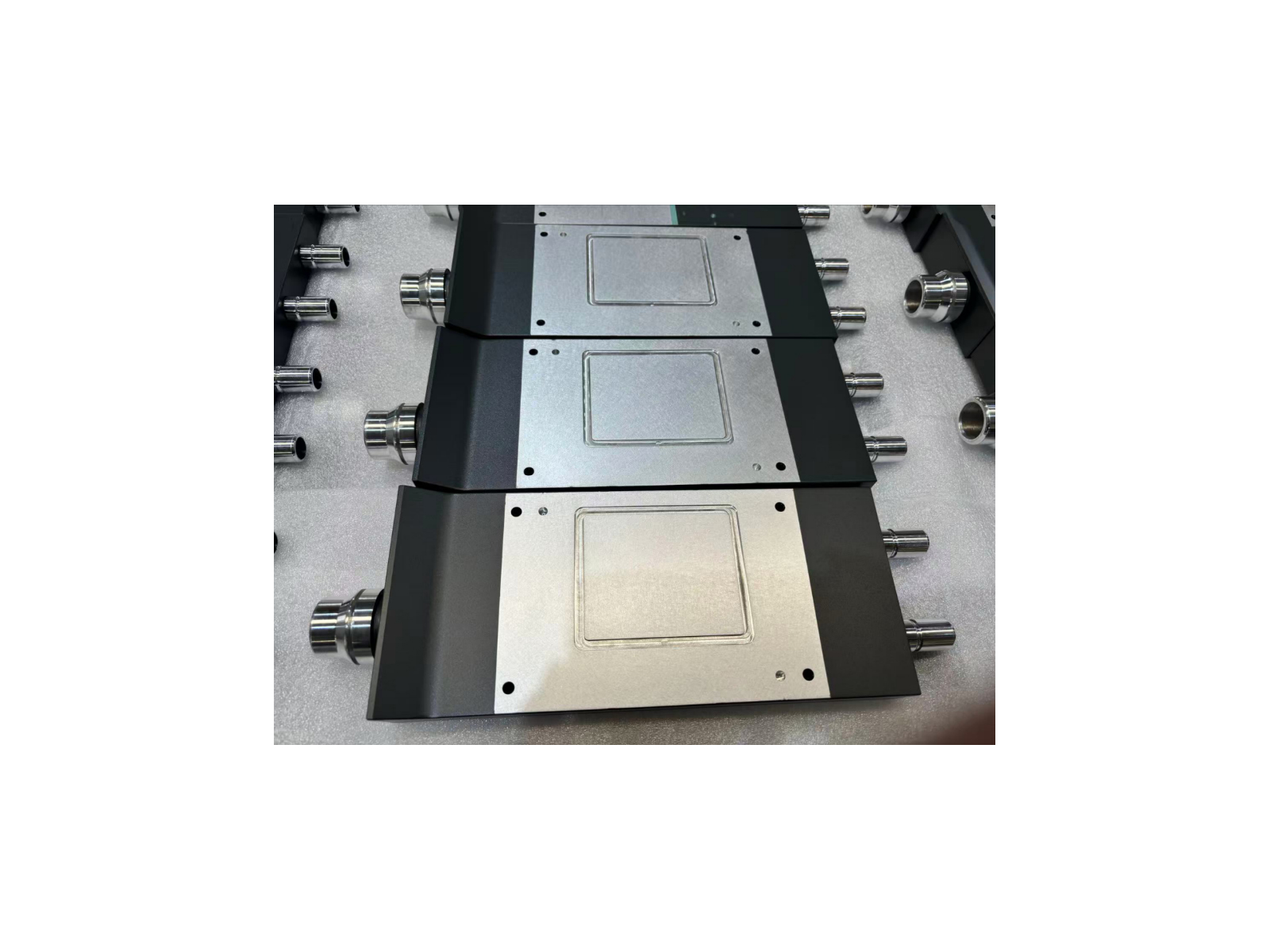

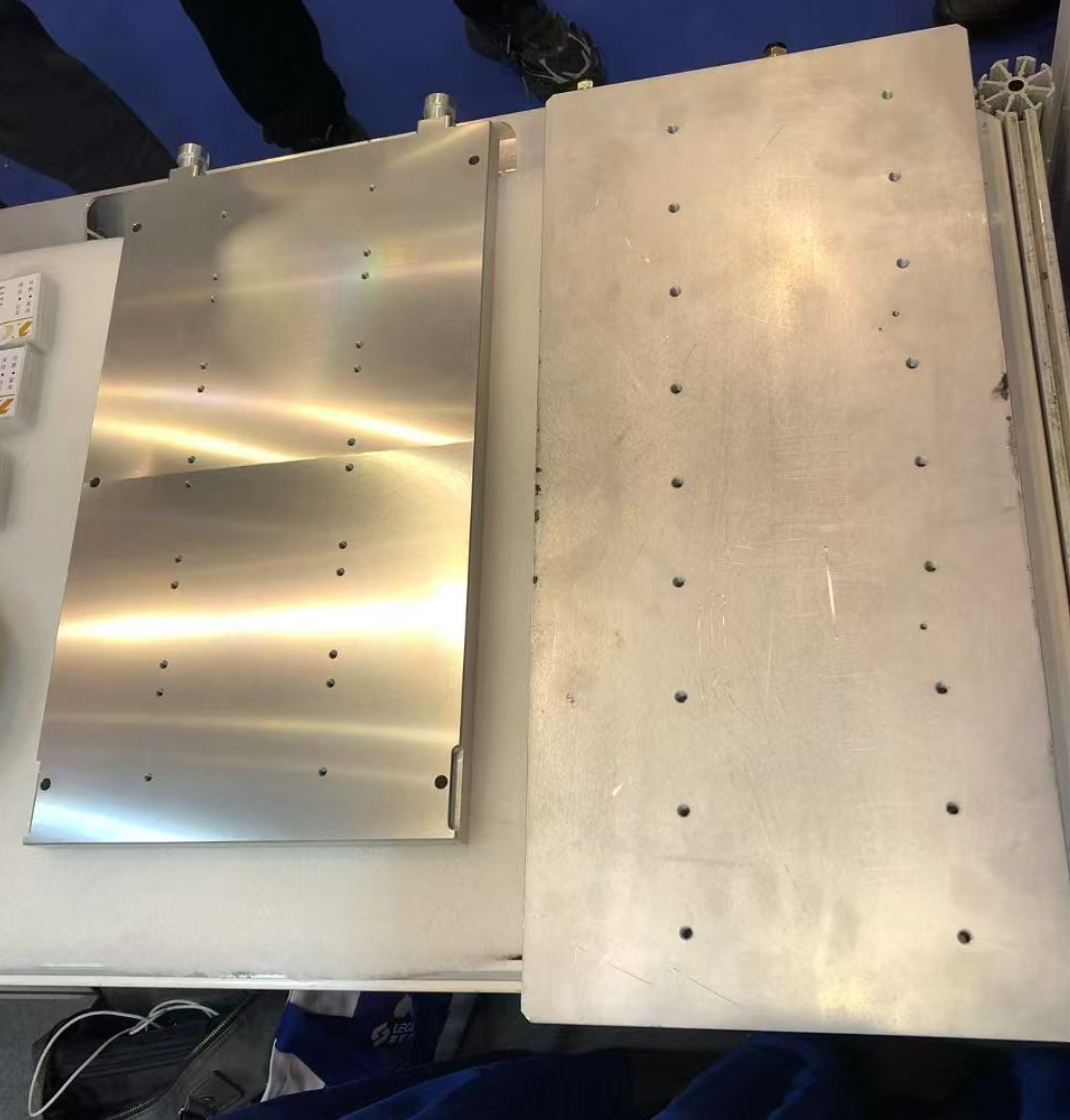

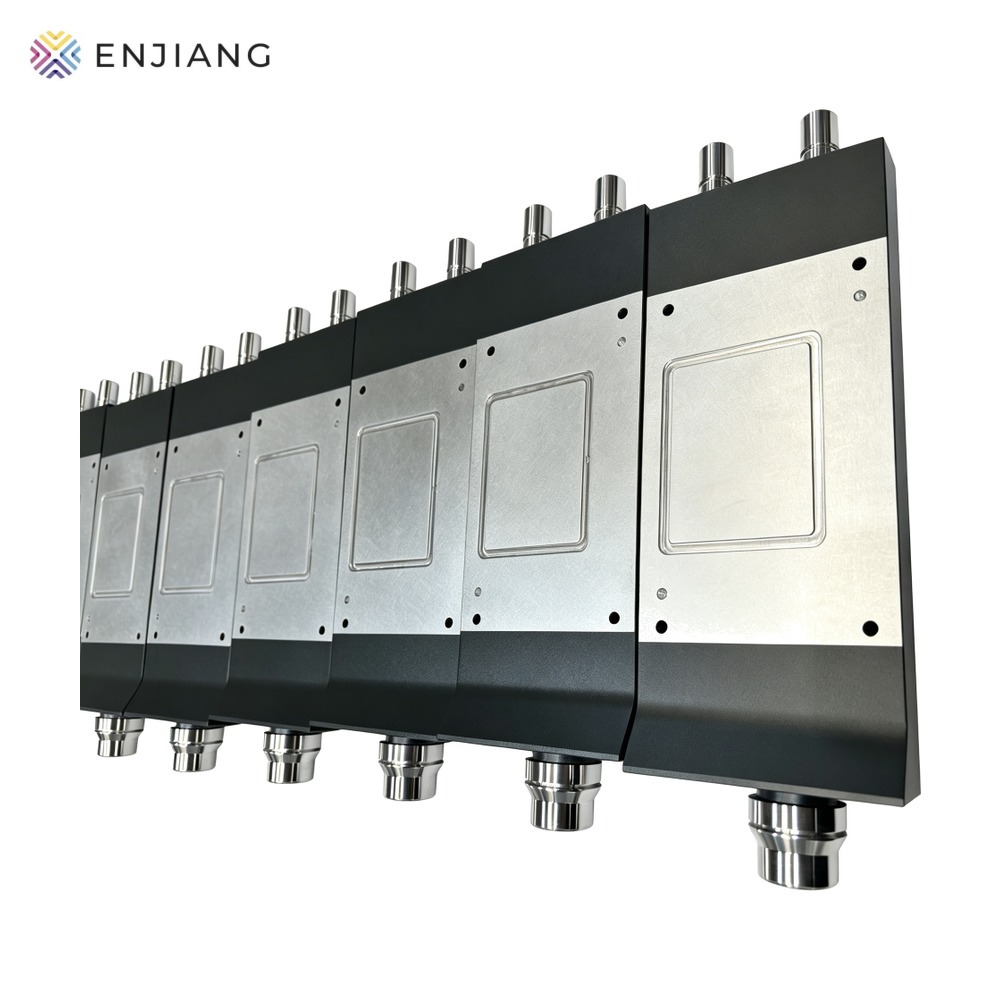

Machined cooling plates are manufactured by CNC milling flow channels on solid aluminum base plate, then sealed by friction‑stir welding or brazing. This solution offers high design flexibility for complex thermal requirements, widely used for special‑structure energy storage and power battery packs.
Key Features
‑ CNC milled flow channels, flexible for complex and irregular channel layouts
‑ Solid aluminum substrate, high structural strength and good pressure resistance
‑ Sealed by friction‑stir welding or brazing for dependable leak‑proof performance
‑ Precise dimensional tolerance, controllable flatness for high‑precision assembly
‑ Withstands 1.0 MPa working pressure; compatible with water‑glycol coolant
‑ Complete battery‑grade inspections including air‑tightness, hydraulic pressure and cleanliness test‑
Support custom size, channel pattern and surface treatment from prototype to mass production
‑ RoHS & REACH compliant for global new‑energy projects
